Description

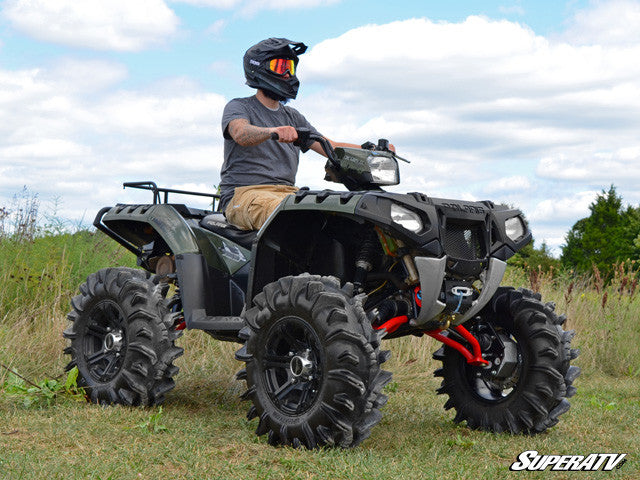

polaris gear Polaris Sportsman/Scrambler 4" Portal Gear Lift – CATVOSPolaris Sportsman Scrambler 4" Portal Gear Lift Will fit: SCRAMBLER 1000 MD : 2015 SCRAMBLER 1000 XP : 2014 2016 SCRAMBLER 850 : 2013 2016 SPORTSMAN 1000 XP : 2015 2016 SPORTSMAN 550 : 2010 2014 SPORTSMAN 850 : 2016 SPORTSMAN 850 MV : 2012 2014 SPORTSMAN 850 SP : 2015 2016 SPORTSMAN 850 TOURING : 2015 SPORTSMAN 850 TOURING SP MD : 2015 SPORTSMAN 850 WV : 2014 SPORTSMAN FOREST 1000 : 2015 SPORTSMAN FOREST 550 : 2011 2014 SPORTSMAN FOREST 850 : 2011
Polaris Sportsman/Scrambler 4" Portal Gear LiftWill fit:
SCRAMBLER 1000 MD : 2015
SCRAMBLER 1000 XP : 2014-2016
SCRAMBLER 850 : 2013-2016
SPORTSMAN 1000 XP : 2015-2016
SPORTSMAN 550 : 2010-2014
SPORTSMAN 850 : 2016
SPORTSMAN 850 MV : 2012-2014
SPORTSMAN 850 SP : 2015-2016
SPORTSMAN 850 TOURING : 2015
SPORTSMAN 850 TOURING SP MD : 2015
SPORTSMAN 850 WV : 2014
SPORTSMAN FOREST 1000 : 2015
SPORTSMAN FOREST 550 : 2011-2014
SPORTSMAN FOREST 850 : 2011-2015
SPORTSMAN TOURING 1000 : 2015-2016
SPORTSMAN TOURING 550 EPS : 2010-2014
SPORTSMAN TOURING 850 EPS : 2010-2014
SPORTSMAN TOURING 850 SP : 2015-2016
SPORTSMAN X2 550 : 2010-2014
SPORTSMAN X2 850 : 2011
SPORTSMAN XP 550 : 2009-2014
SPORTSMAN XP 850 : 2009-2013
SPORTSMAN XP 850 EPS : 2009-2014
SPORTSMAN XP 850 HO EPS MD : 2015
SPORTSMAN XP TOURING 550 EPS INTL : 2012
SPORTSMAN XP TOURING 850 EPS INTL : 2012
Why We Make Them?
Take back your torque with Gear Driven Performance by SuperATV. We all know monster tires rob your much-desired horsepower. To keep that ultimate performance and gain an extra 4” of coveted lift, you want GDP from SuperATV.
Why GDP?
The GDP portal lift system spares no details as the most comprehensive kit on the market. SuperATV knows suspension and transferred over 10 years of suspension engineering into the GDP portal lifts. GDP starts by vertically relocating the axle centerline while retaining factory steering geometry – a must if you want to increase the life of your axles, differential, and drive train components. Pair that with a 1.4:1 gear reduction (approximately 30%), and you’ve got a performance driven machine!
Performance
- Pair with SuperATV lift kits, a arms, and axles for extreme performance
- 30% gear reduction
- Designed for all terrains and riding styles
- Quiet gears at all speeds
- Performs at machine's fullest capacity
Axles
- You will not chop your axles. GDP is the only kit on the market compatible with aftermarket and OEM axles with no modifications
- GDP maintains performance-ready axle angles
Impenetrable Bearings and Seals
- First in the industry thrust bearing that is specifically designed to take axial load, unlike the standard bearing that is only sufficient for radial loads
- Automotive grade bearings
- Press fit, precision ground gears and shafts to eliminate unwanted slop
Precision-Ground Gears: drive gear, idler gear and driven gear
- Precision-ground chromium titanium alloy gears for industry best performance
- Eliminates friction for reduced heat, noise and allows you to run at higher speeds
- Reduced friction build-up
Steering Arm
- Heavy duty structural member
- 10.9 grade hardware
- Modular design for improved functionality
Aluminum Housing
- CNC machined aluminum housing
- Polished aluminum for long lasting, stylish finish
How About Adjustability? Pair with our adjustable a arms
- GDP understands the need for adjustability allowing you to custom tailor your machine to match your riding needs
- Eliminates unwanted, premature tire wear caused from misalignment
- Camber adjustability on all SuperATV a arms
Mounting Plates and Pivot Blocks
- CNC formed, fully gusseted 5/16” mounting plates
- Forged pivot blocks
Slotted Rotors for Unmatched Cooling
- Each wheel hub includes 4 bolt patterns 4/156, 4/137, 4/115, 4/110
- Ability to utilize different wheels on same hub
- Stainless steel, braided brake lines included in each kit
Wheel Requirements
- Requires a 14" or larger wheel
- Wheels can not exceed 5" backspacing
| Suspension Setup | Max Tire Size |
| Stock | 28" (up to 32" if you trim the fenders) |
| 2" Lift Kit | 29.5" (up to 34" if you trim the fenders) |
| 6" Lift Kit | 38" (up to 44" if you trim the fenders) |
| Measurements taken with suspension fully compressed and at max turn. Although these are not fully representative of normal riding conditions, stated tire sizes will not rub. With minimal rubbing or trimming, larger sizes can be used. |
